Fitment Information
- Eagle Summit Base 2.4L L4 (1992, 1993, 1994, 1996)
- Eagle Summit DL 2.4L L4 (1992, 1993, 1994, 1996)
- Eagle Summit LX 2.4L L4 (1992, 1993, 1994, 1996)
Specs & Features
- Torque Capacity (ft/lbs.): 570 (Torque Capacity is measured at the Engine/Crank)
- Torque Capacity Over OE: 125%
- Disc Material: Ceramic
- Clutch Disc Diameter (Inches): 8.8
- Clutch Disc Diameter (Millimeters): 224
- Input Shaft Diameter (inches): 0.875
- Pressure Plate Type: Maxx Xtreme
Product Description

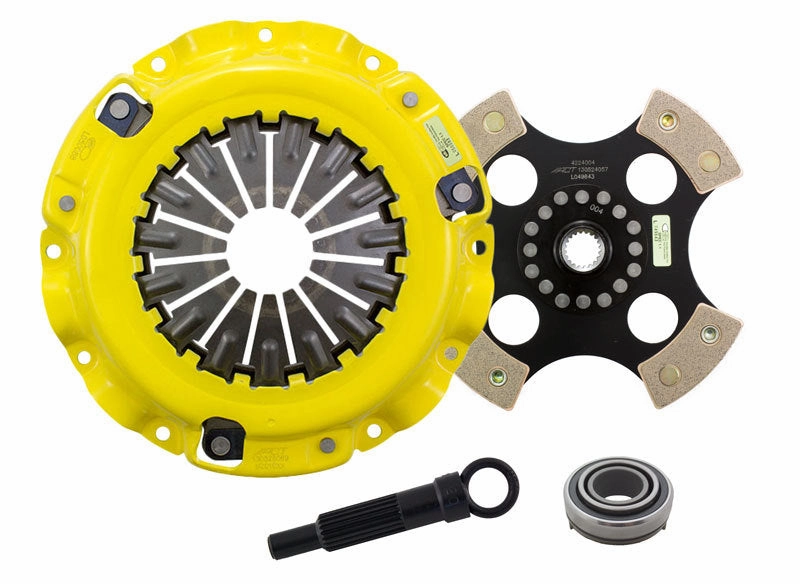

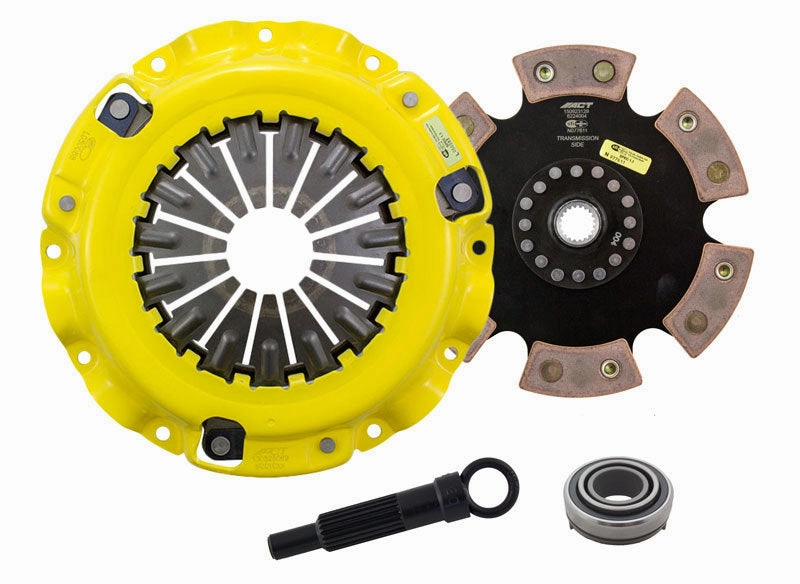

Experience the power of the Maxx Xtreme/Race Rigid kit, designed for passionate enthusiasts. ACT's Maxx pressure plate boasts an innovative diaphragm design, enhancing clamp load and extending clutch lifespan. Through a meticulous four-stage heat-treating process, ACT's diaphragms deliver unparalleled performance. Precision cover stampings ensure rigidity and consistency, while ACT's 4 or 6 pad rigid race discs, crafted from high-quality ceramic friction materials, offer durability. Heat-treated chrome-moly hubs provide strength, enabling quicker shifts and seamless operation. While engagement may be firmer with the 4 or 6 pad rigid race disc, the result is lightning-fast shifting, ideal for smaller engines. Elevate your driving experience with ACT's premium performance solutions.
- Feel: Experience a heavy to very heavy pedal effort, with aggressive engagement for quick shifts and increased gear rattle.
- Life: Enjoy moderate friction life, extended by ACT's exclusive diaphragm design. Note that the rigid design may lead to increased spline wear over time.
- Quality: Carefully engineered, precisely assembled, and accurately balanced, utilizing select ceramic friction materials for high heat tolerance and maximum performance.
- Recommended Use: This product is recommended for race use only, given its aggressive engagement and high-performance capabilities.
- ACT Difference: Each unit is 100% clamp load tested and dynamically computer balanced, ensuring smooth operation and reliability even at high RPMs.
