Product Title | AT Clutches Honda Civic 2001-2005 2.0L Stage1 Clutch Kit |
Part Number | K-08-022 S1 |
Weight (Gross Pounds) | 11.66 |
Height (Inch) | 3.625 |
Length (Inch) | 15.375 |
Width (Inch) | 15.375 |
Pressure Plate Size | 8.375 |
Clutch Cover Type | Diaphragm Style |
Clutch Cover Material | Ceramic |
Clutch Disc Size | 8.375 |
Clutch Disc Spline Quantity (EA) | 20 |
Input Shaft Diameter (Inch) | .844 |
Disc Type | Organic |
Disc Stage | Stage 1 |
Number of Clutch Disc Springs (EA) | 4 |
Vehicle Model | Acura EL |
Engine Size | L4 1.5L, 1.6L |
Year | Acura EL 1997-2000 |
Engine Code | D16Y8 |
Clamp Load | High |
Clutch Torque |
|
Kit Contents | Cover, Disc, release bearing, alignment tool |
|
|
Variety of Vehicles
We provide a full line of clutch related auto parts for a variety of vehicles, like the very popular Nissan 350z an 370z Infinity G35 & G37 and other popular sports cars.
Clutch Related Parts
We are fully focusing on clutch components design production and customer service in both the oem and aftermarket segments for our products including pressure plate, Disc, Flywheel, Slave Cylinder, Throw out bearing, Pilot bushing and alignment tools.

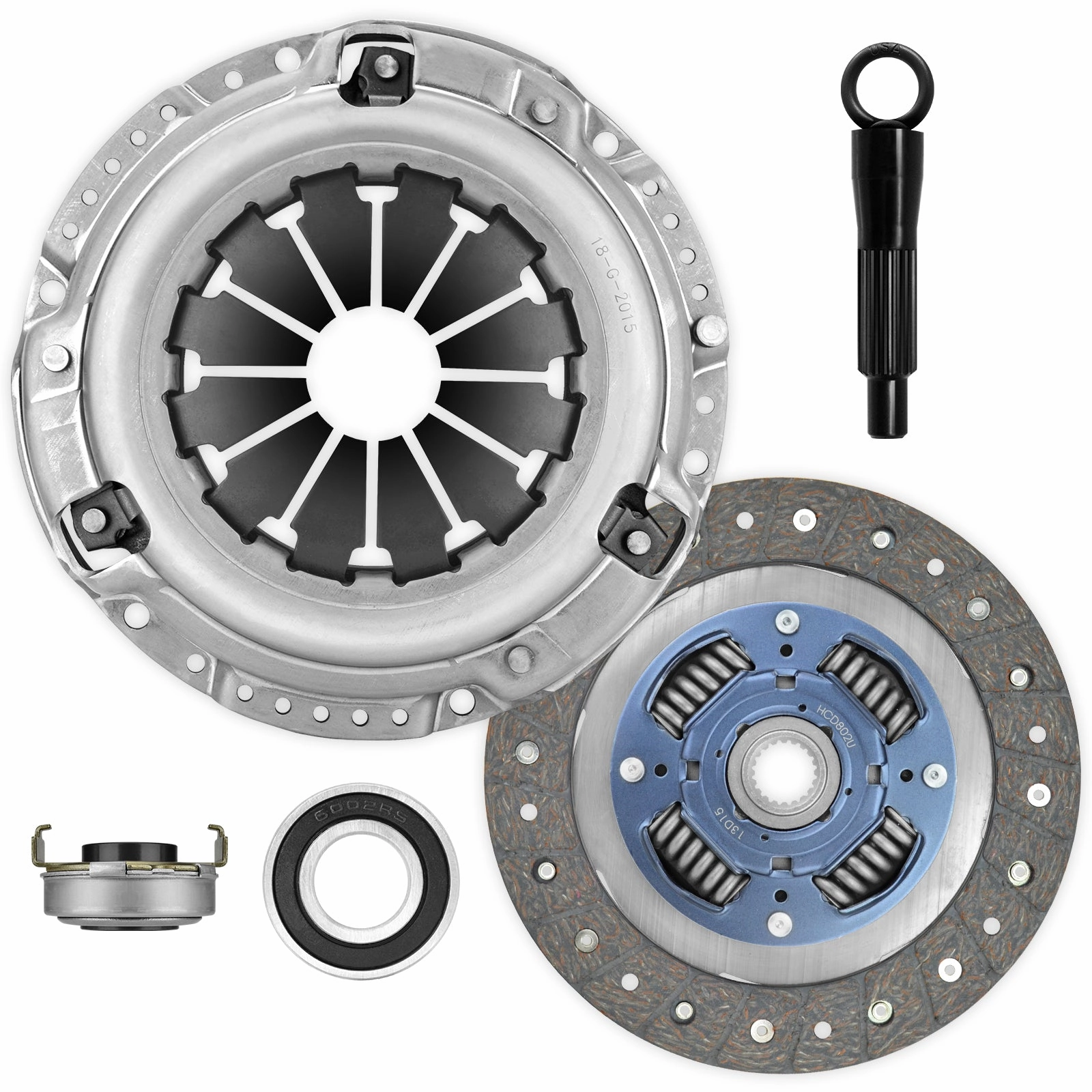

This complete clutch kit includes:

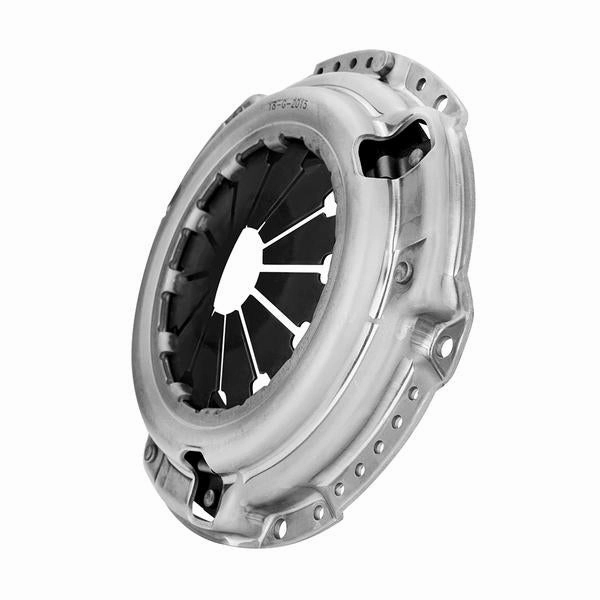

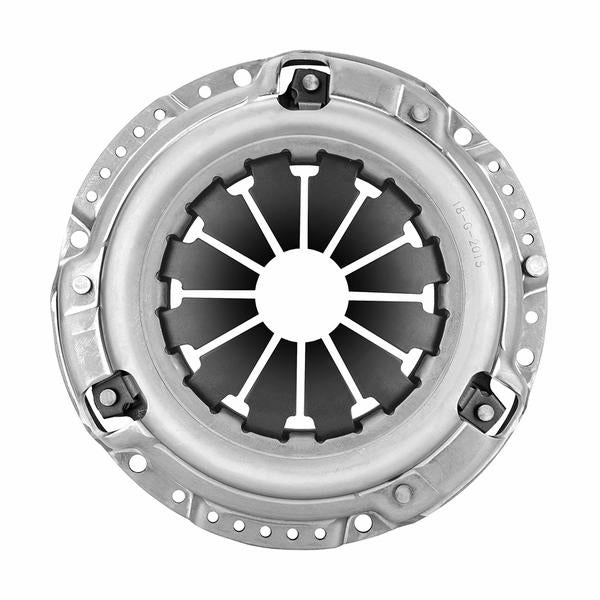

Pressure Plate: 8-3/8"

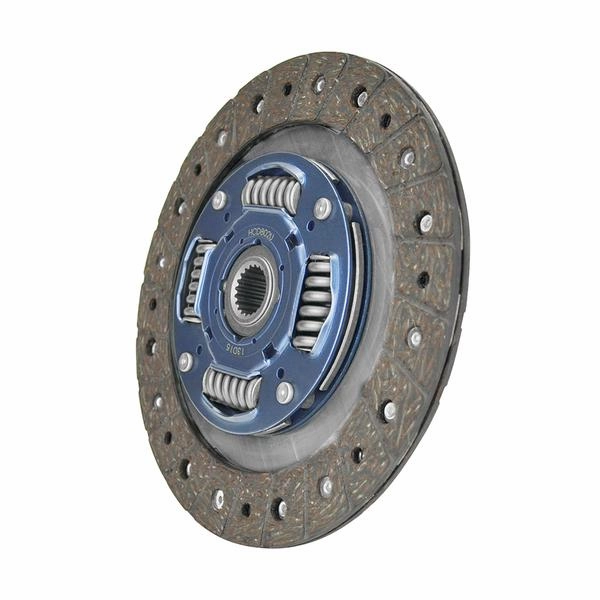

Stage 2 Clutch Disc: 8.375 x .844 x 20T

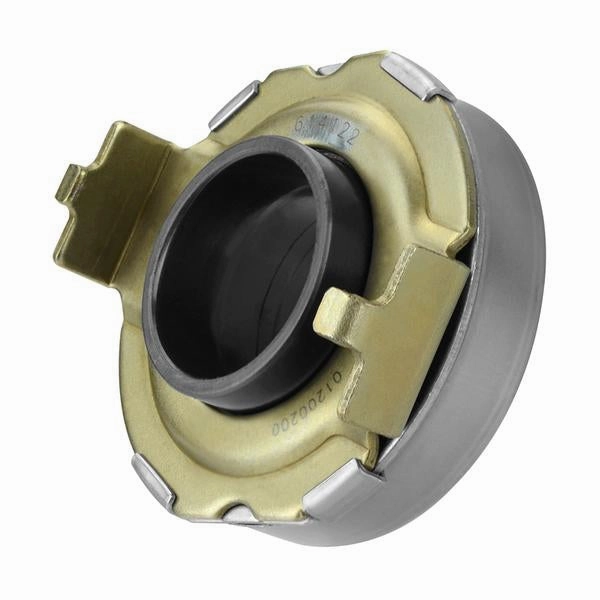

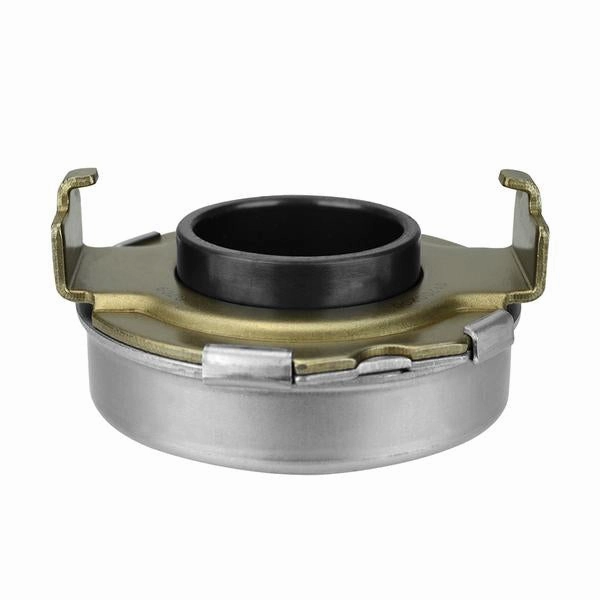

Release Bearing: Bore 1.221 OD 2.852 Width 1.575

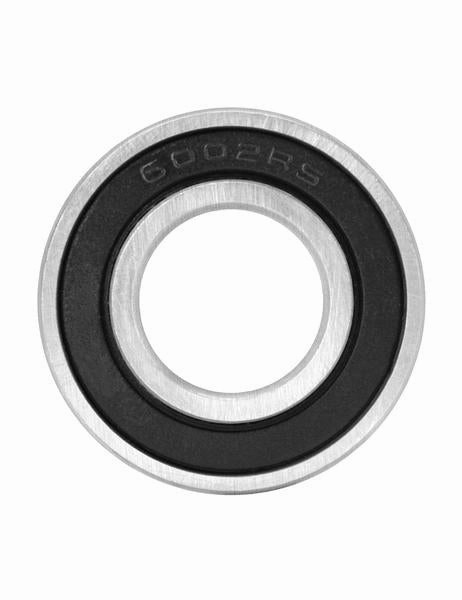

Pilot Bearing : Bore 15mm OD 32mm Width 9mm
Alignment Tool: Spline Dia: 7/8" Spline Count: 20T Pilot Dia: 0.59
Vehicle Application:
Acura EL 1997-2000 (L41.6)
Acura EL 2001-2005 (L41.7)
Honda Civic 1992-1995 (L41.5)
Honda Civic 1992-2000 (L41.6)
Honda Civic 2001-2005 (L41.7)
Honda Civic Del Sol 1993-1995 (L41.5L, 1.6L)
Don't know which clutch to choose? View our clutch chart below!
