Application
| Engine | FA20 |
|---|---|
| Model Year | 04/2012 - 10/2021 |
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | 〇 | 〇 |
| Upper mount | Spherical bearing | Rubber |
| Inverted/Normal type | Inverted | Normal |
| Damper/Spring layout | Coilover | Coilover |
| Spring rate change at factory | Impossible | Impossible |
| Damping force adjustment with wire | - | - |
| Helper spring (Spring rate N/mm) | - | 〇 (19.8) |
Ride Height mm
| Factory *2 | Test data | Adjustable range High - Low *3 | Drivable range High - Low *4 | ||
|---|---|---|---|---|---|
| FRONT | Ride height *1 | 655 | 639 | 671 ～ 613 | 671 ～ 613 |
| Against stock | -16 | -32 | 0 ～ -58 | 0 ～ -58 | |
| REAR | Ride height *1 | 663 | 644 | 675 ～ 622 | 675 ～ 622 |
| Against stock | -12 | -31 | 0 ～ -53 | 0 ～ -53 | |
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 49 ( 5.0 ) | 49 ( 5.0 ) |
| Free height (mm) | 170 | 170 |
| Spring type | Straight Barrel type | Straight Barrel type |
| Recommended range to change spring rate N/mm(kgf/mm) | - | - |
Specification of damper
| F | R | |
|---|---|---|
| Damping force (Rebound/Damping)N* | 471 / 304 | 343 / 363 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping)mm | 42 / 45 | 49 / 57 |
*The value of the damping force is at piston speed of 0.1m/sec.
Setting data
Test vehicle information
| F | R | ||
|---|---|---|---|
| Vehicle weight kg | 669 (690) | 507 (540) | |
| Tire size (Air pressure) kPa | 225 / 40 - 18 ( 240 ) | 255 / 35 - 18 ( 240 ) | |
| Wheel size | 8.0 JJ × 18 inset 48 | 9.0 JJ × 18 inset 52 | |
| Alignment (Toe/Camber) | Test data | in 0 mm / -1°35' | in 0.5 mm / -2°30' |
| Standard value | in 0 ± 3 mm / -0°00' ± 0°45' | in 2 ± 3 mm / -1°12' ± 0°45' | |
*Test data at HKS.
Parts List
* It may be changed without prior notice.
Point

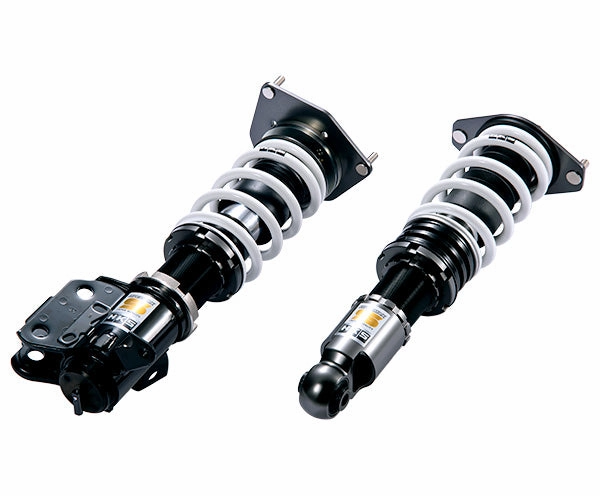

Suspension for 86 (BRZ) Street. Ver has been renewed.
By adjusting the suspension flexibly, the car can be gotten a grip of the traction, making it more comfortable to drive on the street.
In sports driving, the driver can actively control the load shifting and feel the movement of the car to enjoy control.
Although the movement has increased, the settings have been made to suppress abrupt changes in the movement even at the limit range, so that the driver can safely enjoy sports driving.
High durability of 3-year/60,000 km coverage has been achieved by reviewing internal components.
- About modification at the time of installation
- Cutting rear interior is required to install the damper adjustment dial.
