Product Title | AT Clutches Subaru Legacy H4 2.2L Stage 3 Clutch Kit - Heavy Duty |
Part Number | K-15-016 S3 HD |
Weight (Gross Pounds) | 16.7 |
Height (Inch) | 5 |
Length (Inch) | 14 |
Width (Inch) | 14 |
Pressure Plate Size | 8.875 |
Clutch Cover Type | Diaphragm |
Clutch Cover Material | Organic |
Clutch Disc Size | 9 |
Clutch Disc Spline Quantity (EA) | 24 |
Input Shaft Diameter (Inch) | 1 |
Disc Type | 6 Padded, sprung hub |
Disc Stage | Stage 3 Heavy Duty |
Number of Clutch Disc Springs (EA) | 6 |
Vehicle Model | Subaru Legacy |
Engine Size | 2.2L/2212cc |
Year | 1991-1994 |
Engine Code | EJ22 |
Clamp Load | High |
Clutch Torque | 555 |
Kit Contents | Cover, Disc, release bearing, alignment tool |
|
|
Variety of Vehicles
We provide a full line of clutch related auto parts for a variety of vehicles, like the very popular Nissan 350z an 370z Infinity G35 & G37 and other popular sports cars.
Clutch Related Parts
We are fully focusing on clutch components design production and customer service in both the oem and aftermarket segments for our products including pressure plate, Disc, Flywheel, Slave Cylinder, Throw out bearing, Pilot bushing and alignment tools.

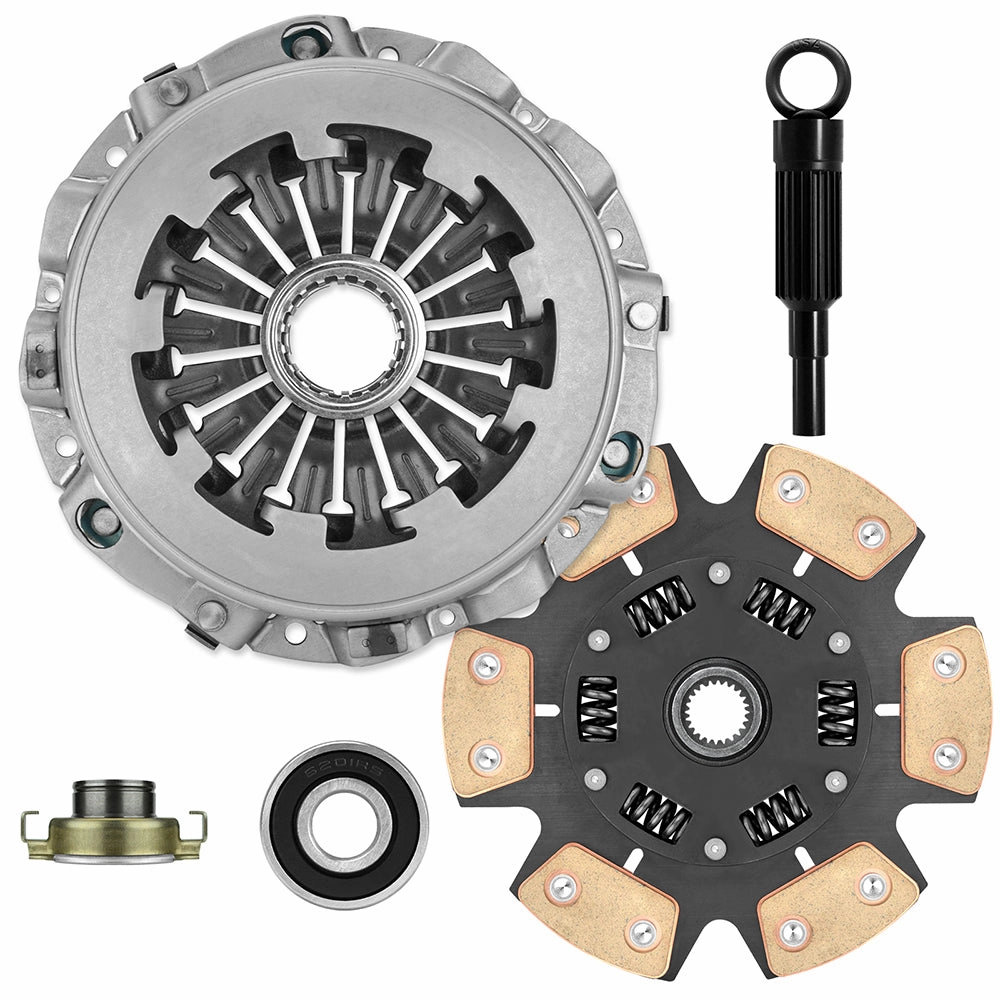

This complete clutch kit includes:

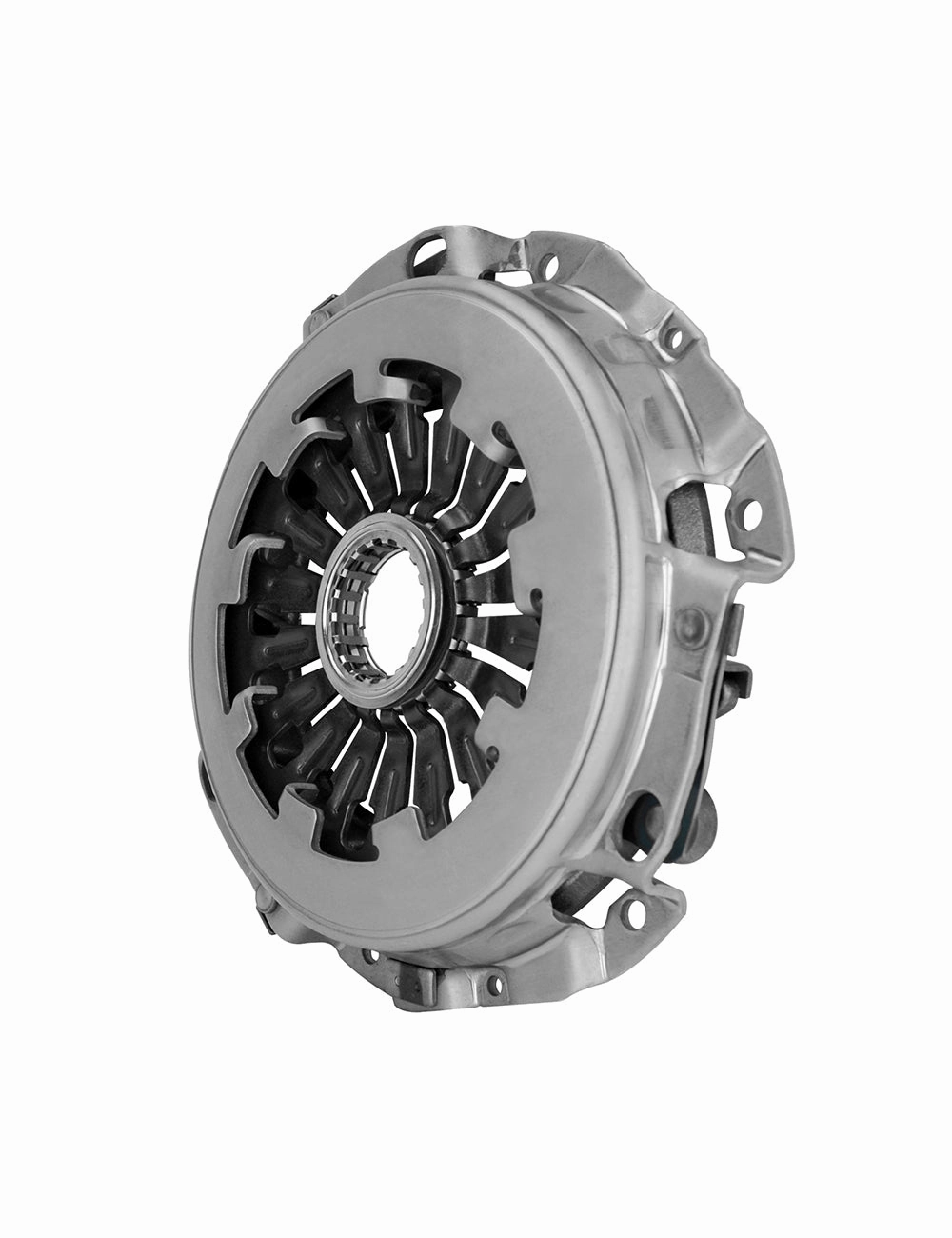

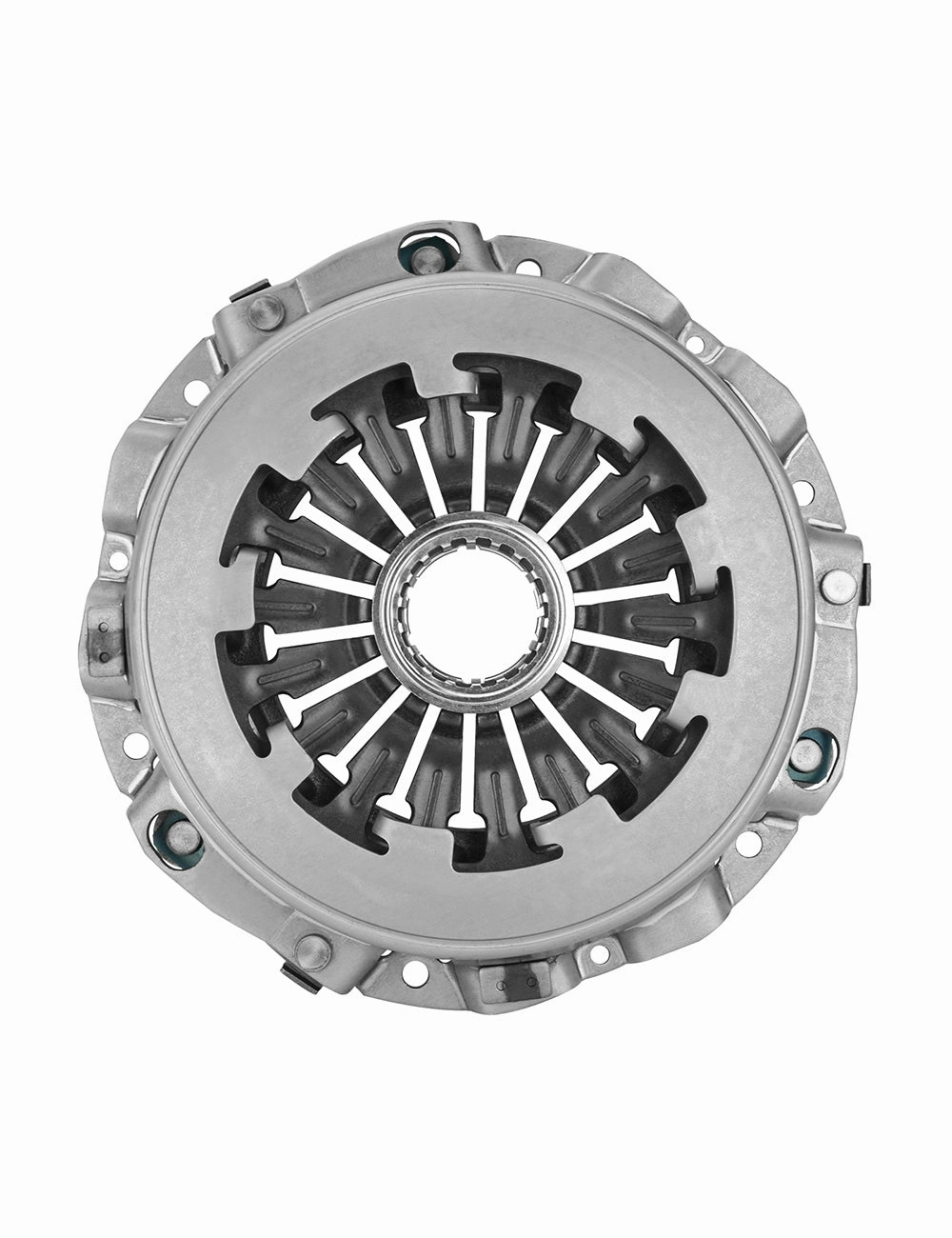

Pressure Plate: 8-7/8"

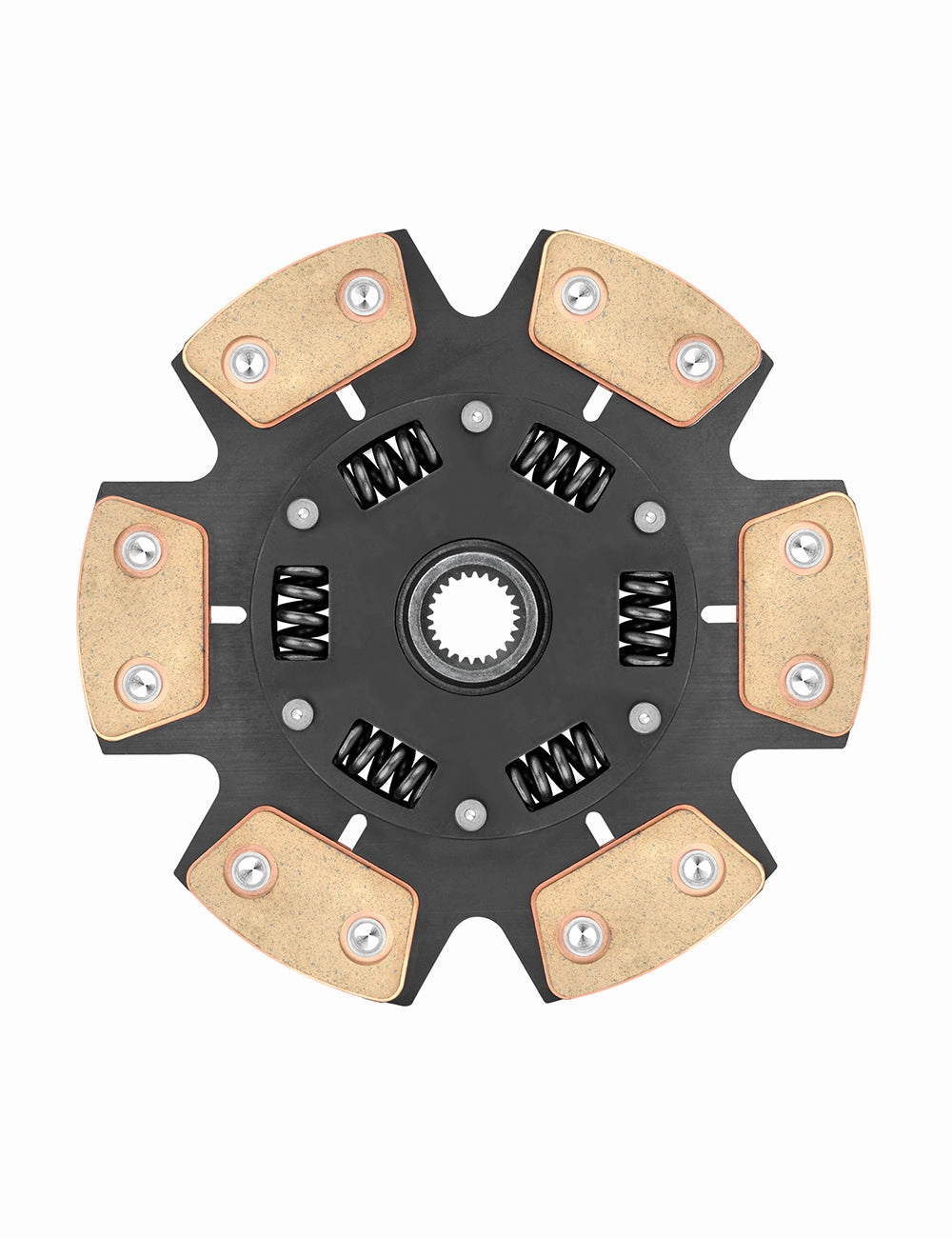

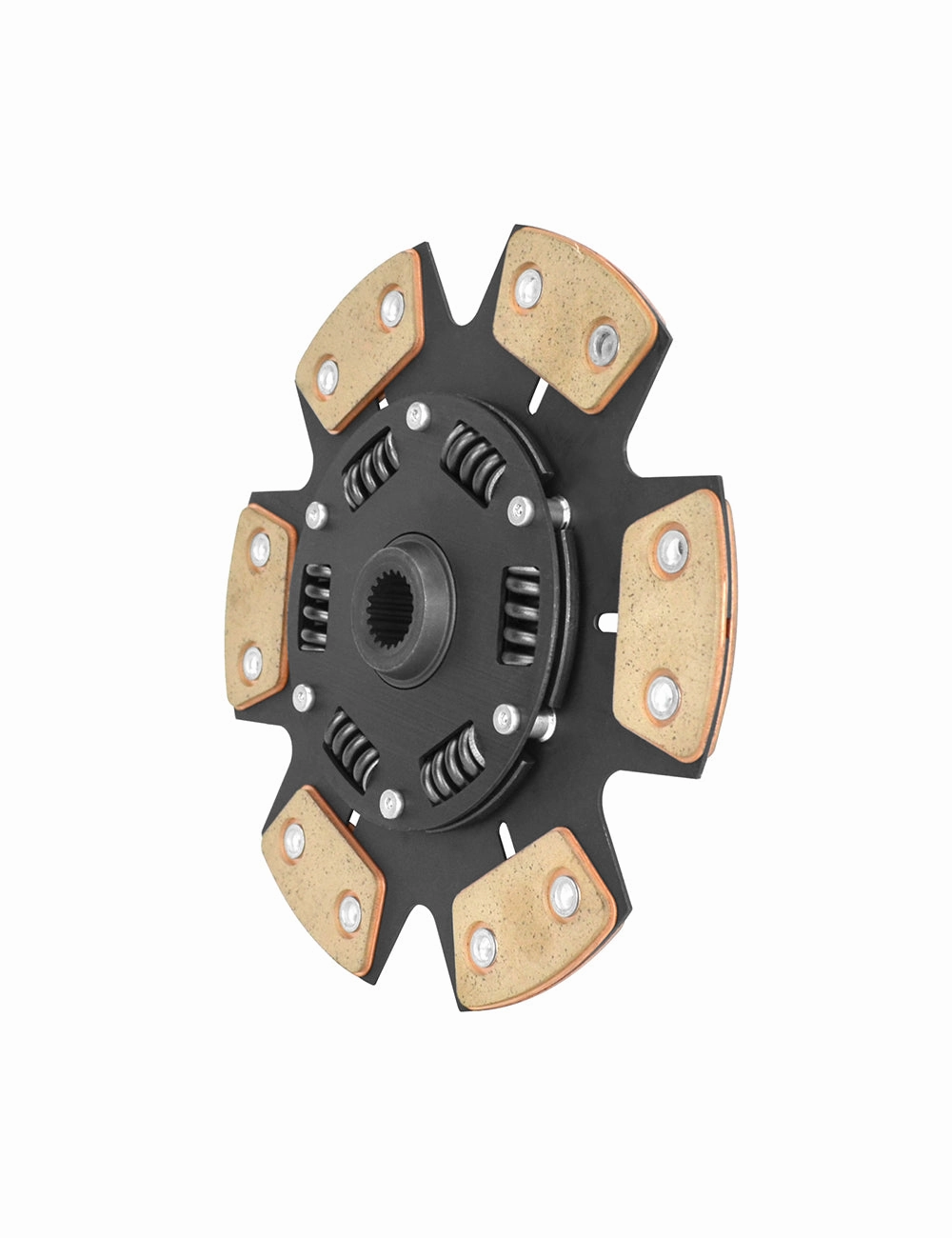

HD Stage 3 Clutch Disc: 8.875" x 1.00 x 24T

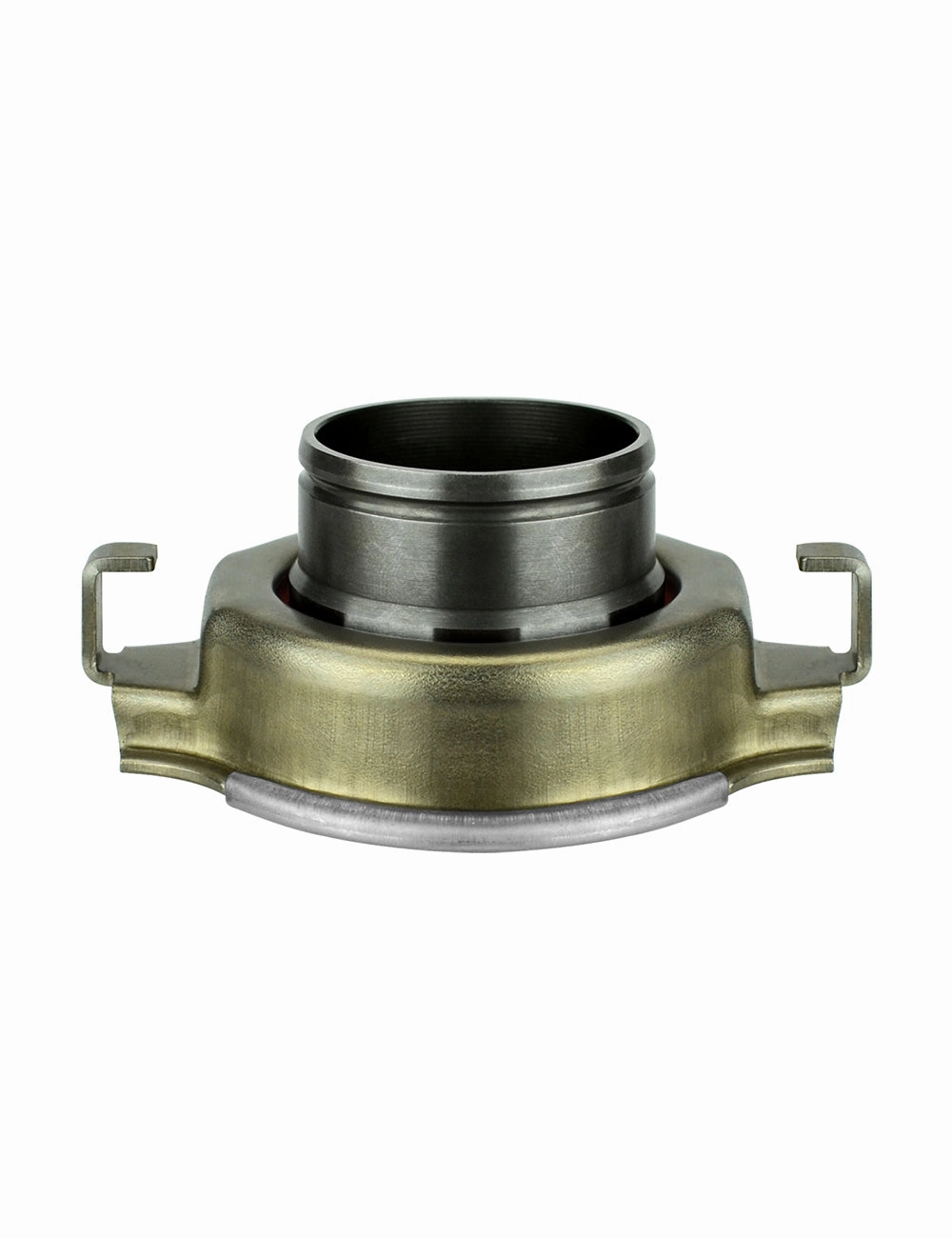

Release Bearing:

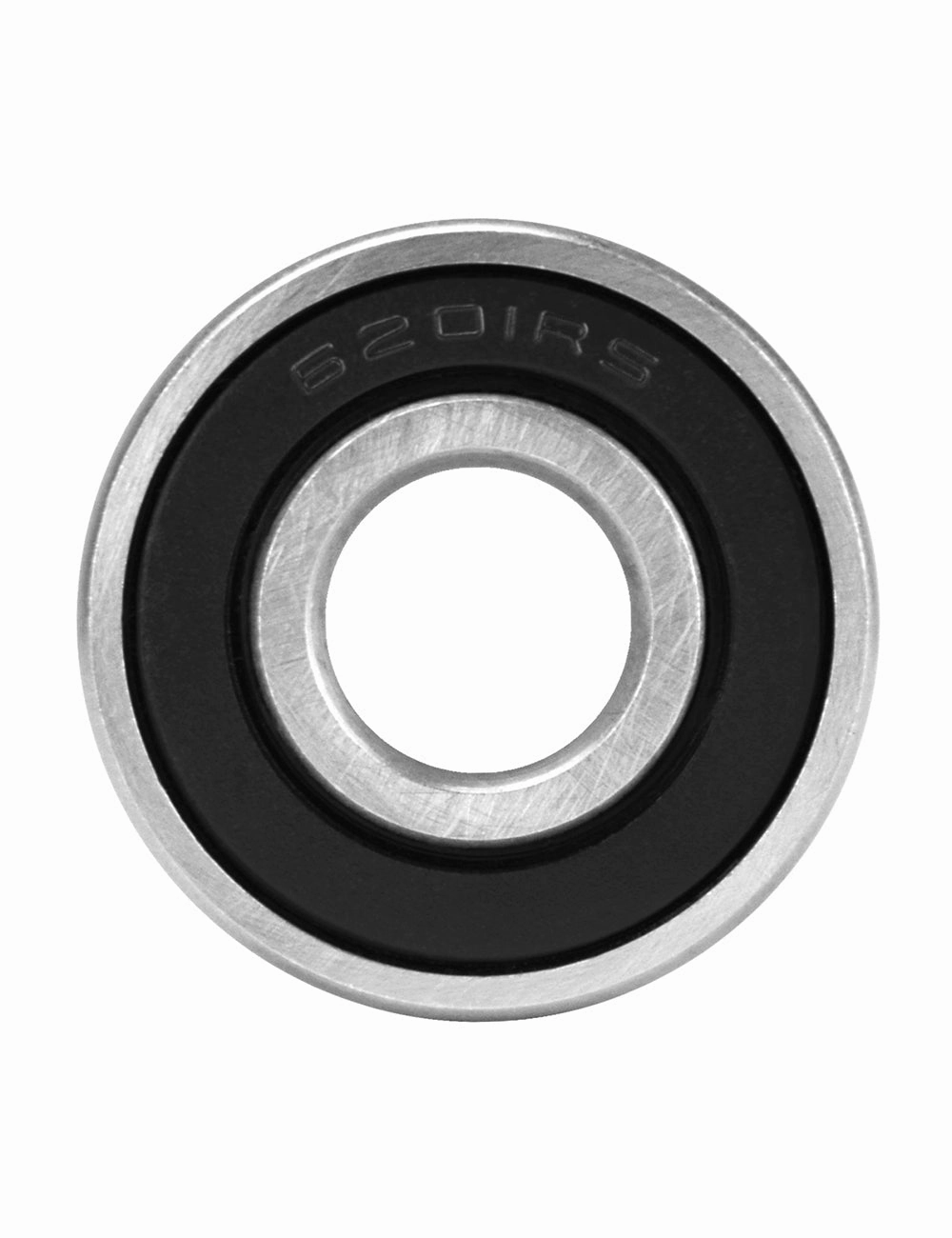

Pilot Bearing : Bore 0.472in OD 1.26in Width 0.394in
Alignment Tool: Spline Dia: 1" Spline Count: 24T Pilot Dia: 0.47
Vehicle Application
Subaru Legacy 1991-1994 H4-2.2
