Product Details
＋

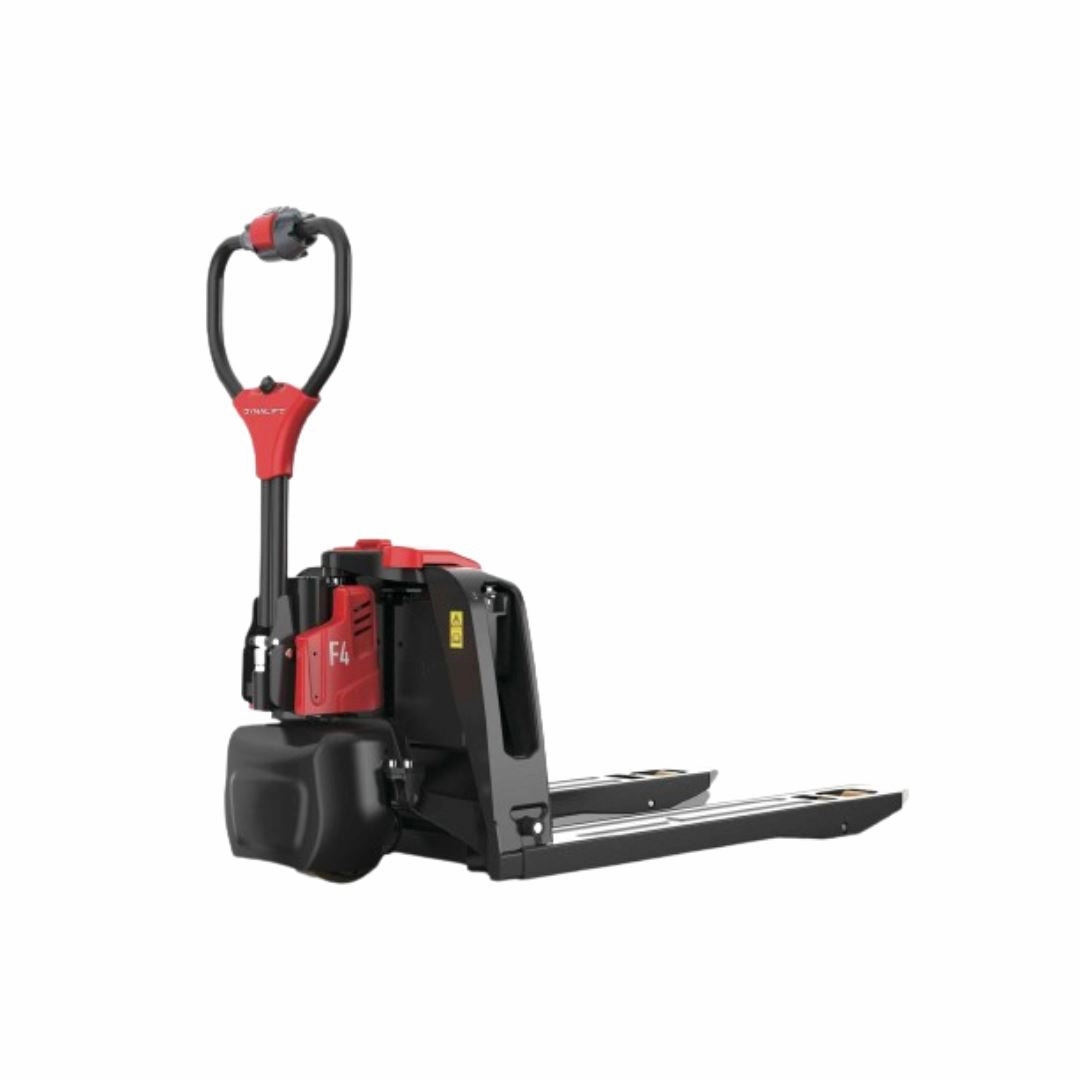

Aiko 1.5 Ton Fully Automatic Pedestrian Electric Pallet Truck Non-stop 4-5hrs with 1 Battery (560 x 1150mm) | Model : PT-AIKO-F4-150

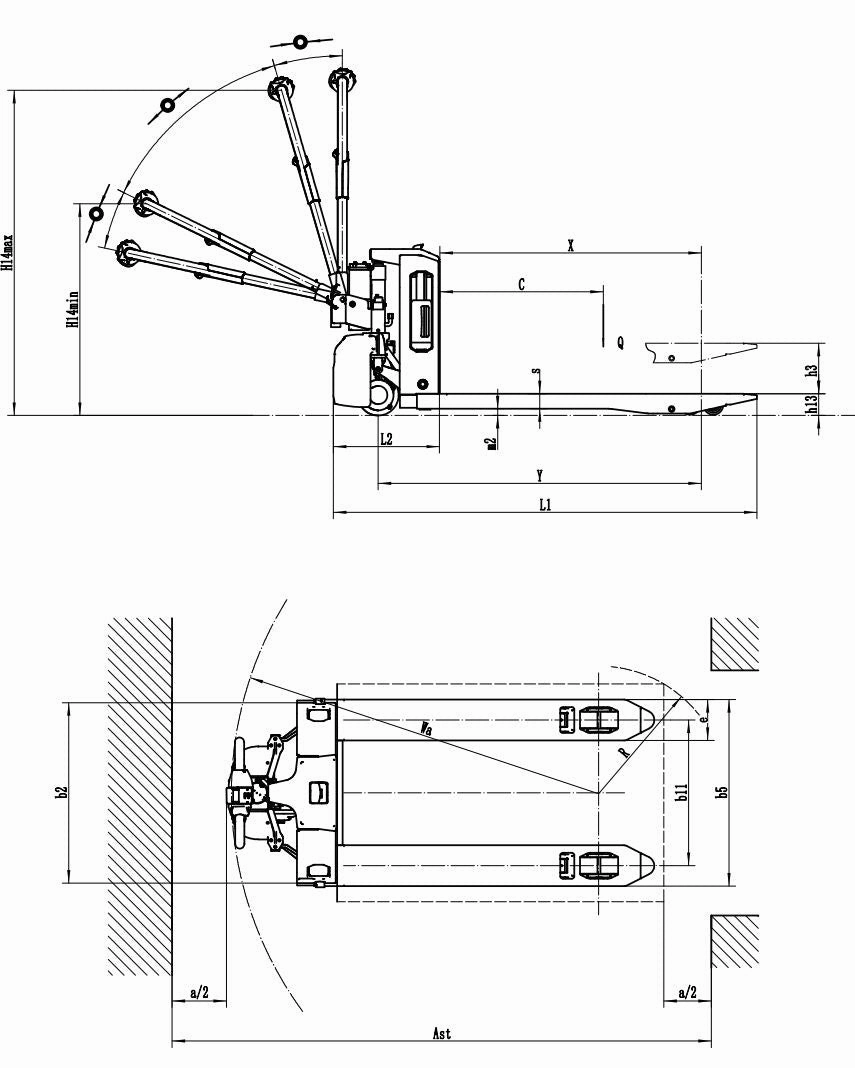

Specification :
| Drive | Electric |
| Operator type | Pedestrian |
| Load capacity, Q (kg) | 1500 |
| Load center distance, c (mm) | 600 |
| Load distance, centre of drive axle to fork, x (mm) | 950 |
| Wheelbase, y (mm) | 1180 |
| Service weight (kg) | 120 |
| Axle loading, laden front/rear (kg) | 480/1140 |
| Axle loading, unladen front/rear (kg) | 90/30 |
| Tyre type | Polyurethane |
| Tyre size, front Tyre size, rear | 210mm x70mm |
| Additional wheels (castor wheels) (mm) | 80mmx60mm |
| Wheels, number front/rear (x=drive wheels) (mm) | 74mm×30mm |
| Tread width, front , b₁₀ (mm) | 1x. -14 |
| Tread width, rear, b₁₁ (mm) | 410 (535) |
| Lift height, h₃ (mm) | 105 |
| Height of tiller handle in drive position min./max., h₁₄ (mm) | 750/1190 |
| Lowered height, h₁₃ (mm) | 88 |
| Overall length, l₁ (mm) | 1550 |
| Length to face of forks, l₂ (mm) | 400 |
| Overall width, b₁ / b₂ (mm) | 590 (695) |
| Fork dimensions, s×e×l (mm) | 55X150X1150 |
| Distance between fork-arms, b₅ (mm) | 560 (685) |
| Ground clearance, center of wheelbase, m₂ (mm) | 25 |
| Aisle width for pallets 1000x1200 cross ways, Ast (mm) | 2160 |
| Aisle width for pallets 800×1200 lengthways, Ast (mm) | 2025 |
| Turning radius, Wa (mm) | 1360 |
| Travel speed, laden/unladen (km/h) | 4/4.5 |
| Lifting speed, laden/unladen (m/s) | 0.017/0.020 |
| Lowering speed, laden/unladen (m/s) | 0.058/0.046 |
| Max. gradeability, laden/unladen (%) | Jun-16 |
| Service brake | Electromagnetic |
| Drive motor rating S2 60 min (kW) | 0.75 |
| Lift motor rating at S3 15% （kW) | 0.5 |
| Battery voltage/nominal capacity (V/Ah) | 24/20 |
| Battery weight (kg) | 5 |
| Energy consumption according to DIN EN 16796 (kWh/h) | 0.18 |
| Turnover output according to VDI 2198 (t/h) | 60 |
| Turnover efficiency according to VDI 2198 (t/kWh) | 383.33 |
| Type of drive control | DC |
| Steering design | Mechanical |
| Sound pressure level at the driver's ear dB (A) | 74 |
