Fitment Information

• BMW 318i Base 1.9L L4 (1996, 1997, 1998, 1999)

• BMW 318is Base 1.9L L4 (1996, 1997, 1998, 1999)
• BMW 318ti Base 1.9L L4 (1996, 1997, 1998, 1999)

• BMW 323Ci Base 2.5L L6 (2000)

• BMW 323i Base 2.5L L6 (1998, 1999, 2000)

• BMW 323is Base 2.5L L6 (1998, 1999)

• BMW 325Ci Base 2.5L L6 (2001, 2002, 2003)

• BMW 325i Base 2.5L L6 (1992, 2001, 2002, 2003)

• BMW 325is Base 2.5L L6 (1992)

• BMW 325xi Base 2.5L L6 (2001, 2002, 2003)

• BMW 328Ci Base 2.8L L6 (2000)

• BMW 328i Base 2.8L L6 (1996, 1997, 1998, 1999, 2000)

• BMW 328is Base 2.8L L6 (1996, 1997, 1998, 1999)

• BMW 330Ci Base 3.0L L6 (2001, 2002, 2003)

• BMW 330i Base 3.0L L6 (2001, 2002, 2003)

• BMW 330xi Base 3.0L L6 (2001, 2002, 2003)

Note:

• Conversion kit. Must be used with ACT 601011 or 601016 flywheel (not included in kit). Pressure plate bolts included (M8-1.25 x 20mm).

Specs & Features

• Torque Capacity (ft/lbs.): 596 (Torque Capacity is measured at the Engine/Crank)

• Torque Capacity Over OE: 94%
• Disc Material: Ceramic

• Clutch Disc Diameter (Inches): 9.4

• Clutch Disc Diameter (Millimeters): 240

• Input Shaft Diameter (inches): 1.125

• Pressure Plate Type: Heavy Duty
• ACT HD pressure plates: Boosted clamp load & extended life with a heat-treated diaphragm.

• Precision rigidity: Consistent performance with precision cover stampings.

• Heat-resistant discs: Premium materials for race-proven street manageability.

• Dynamic engagement: Light to moderate feel, smooth engagement, increased rattle.

• ACT reliability: 100% tested, computer balanced for high RPM reliability.

• Versatile kit: Quality components for street & race, extended life, precise assembly.

Product Description

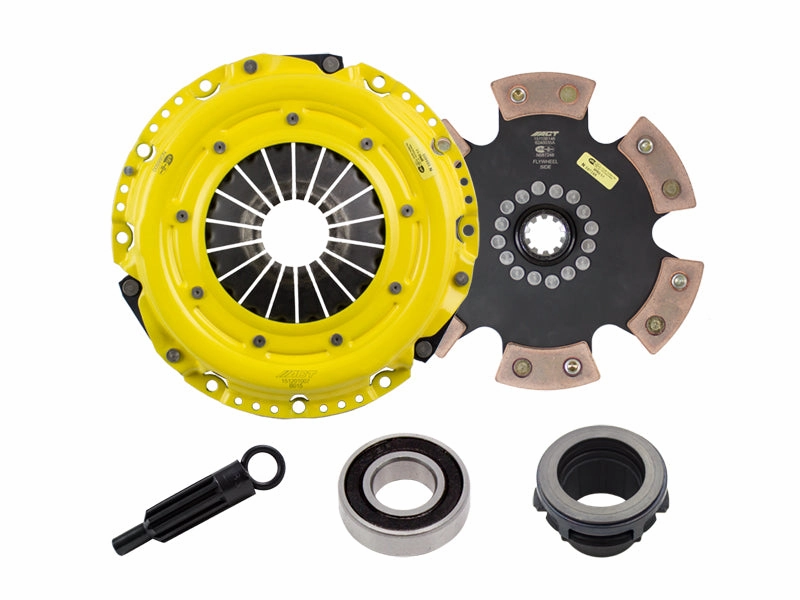

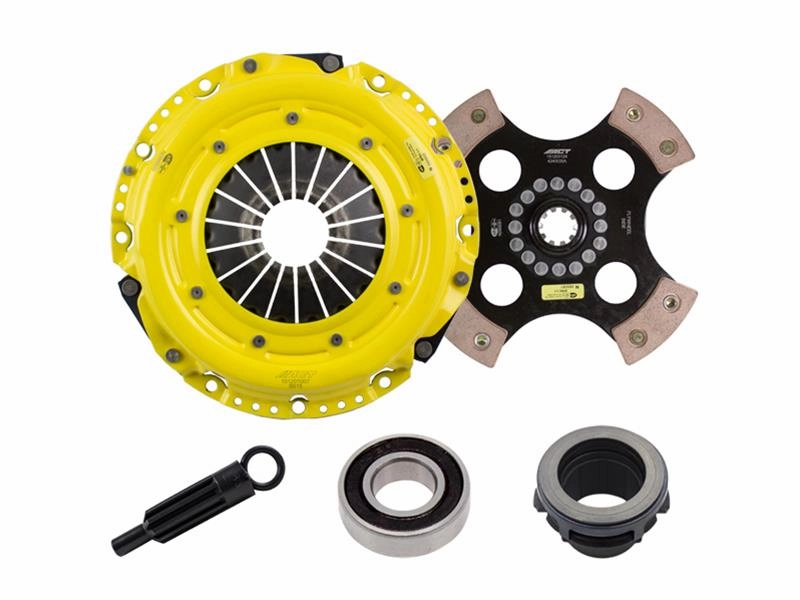

Discover ACT 's top-selling Heavy Duty pressure plate, boasting advanced features for superior performance. Engineered with an exclusive diaphragm design, ACT's Heavy Duty pressure plates enhance clamp load, minimize deflection, and prolong clutch lifespan. Undergoing a rigorous four-stage heat-treating process, all diaphragms ensure unmatched durability. Precision cover stampings ensure consistency and rigidity, while ACT's 4-pad or 6-Pad rigid race discs feature premium ceramic friction materials for optimal performance. Crafted with a chrome-moly hub that's heat-treated for added strength, the lightweight design enables seamless, trouble-free shifts. Despite a slightly harsher engagement, the 4-pad or 6-pad rigid race disc ensures lightning-fast shifting, making it ideal for smaller engines with compact disc sizes.
